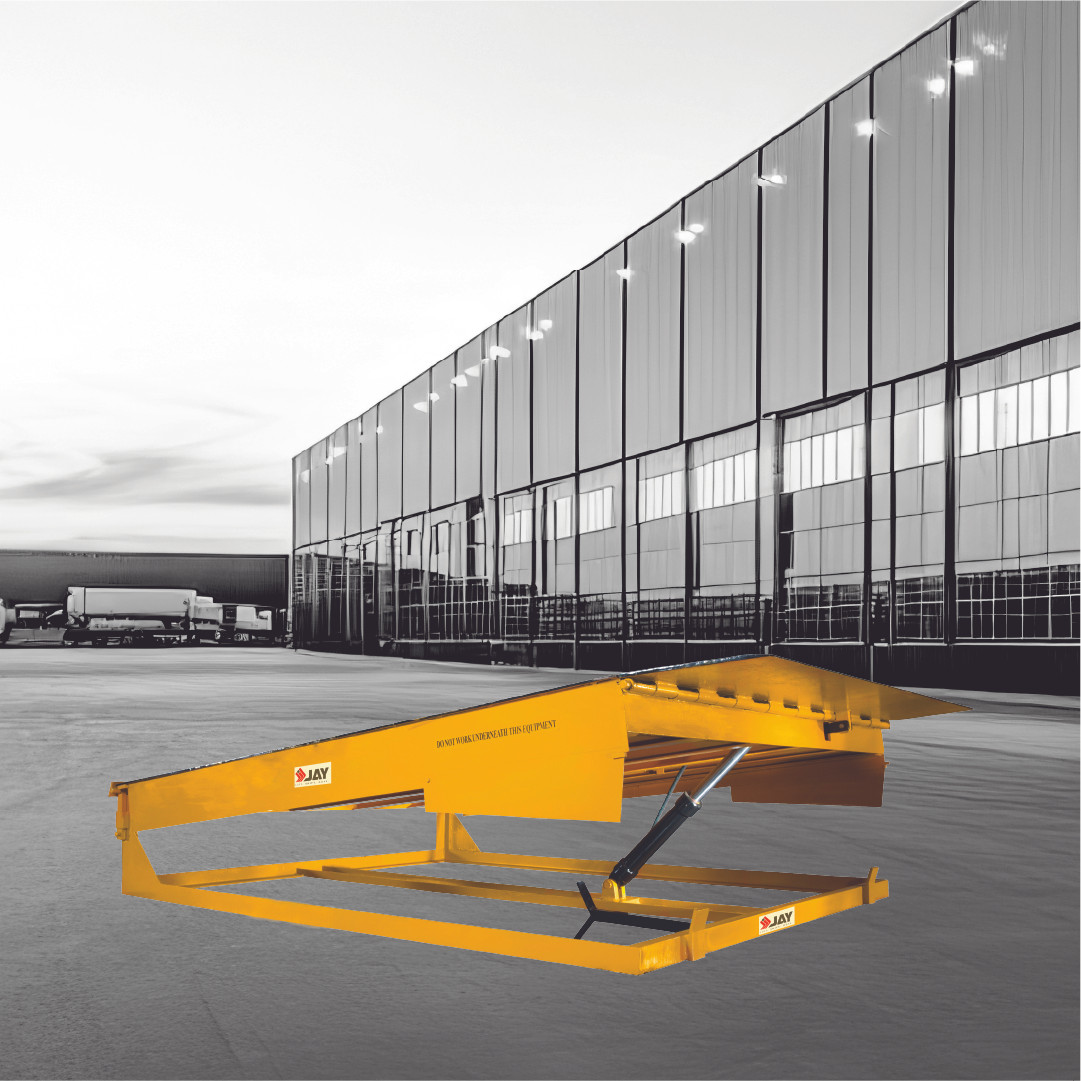

Electric Dock Leveler - Capacity: 10000 Kgs. (EDL-100 M2)
Price
₹236,000.00
Excluding Taxes
JAY Equipment’s Electric Dock Levelers are engineered for the most demanding industrial and warehouse environments. The EDL-100 M2 model features a static load capacity of 10,000 kgs, ensuring seamless bridging between your loading dock and a variety of truck heights for efficient, damage-free cargo handling & Shipping in 4-5 weeks.
The robust hydraulic system—with a choice of mild steel or stainless steel construction—ensures reliable performance and enhanced longevity. The deck height adjusts up to 600mm at the push of a button, or via a wireless remote, for maximum operator convenience and safety.
Quantity
KEY FEATURES
- 10,000 kgs Static Load Capacity: Handles bulk and heavy-duty freight
- Adjustable Height: Max raised 300mm/600mm, min lowered 250mm/300mm
- Hydraulic Operation: Powerful AC 3-phase system for smooth deck and lip movement
- Remote & Push-Button Control: Flexible, intuitive operation from a safe distance
- Choice of Materials: Standard mild steel finish or optional stainless steel for high-hygiene areas
- Robust Construction: Engineered for long life and minimal maintenance
TECHNICAL SPECIFICATIONS
| Load Capacity | 10,000 kgs (Static) |
| Max Height | 300mm / 600mm |
| Max-Lowered Height | 250mm / 300mm |
| Power | AC 3 Phase |
| Operation | Single Push Button | Wireless Remote |
| MOC | Mild Steel | Stainless Steel |
| Platform Length x Width | 2750 mm x 2000 mm |
| Lip Operation | 540 mm hydraulic lip extension |
