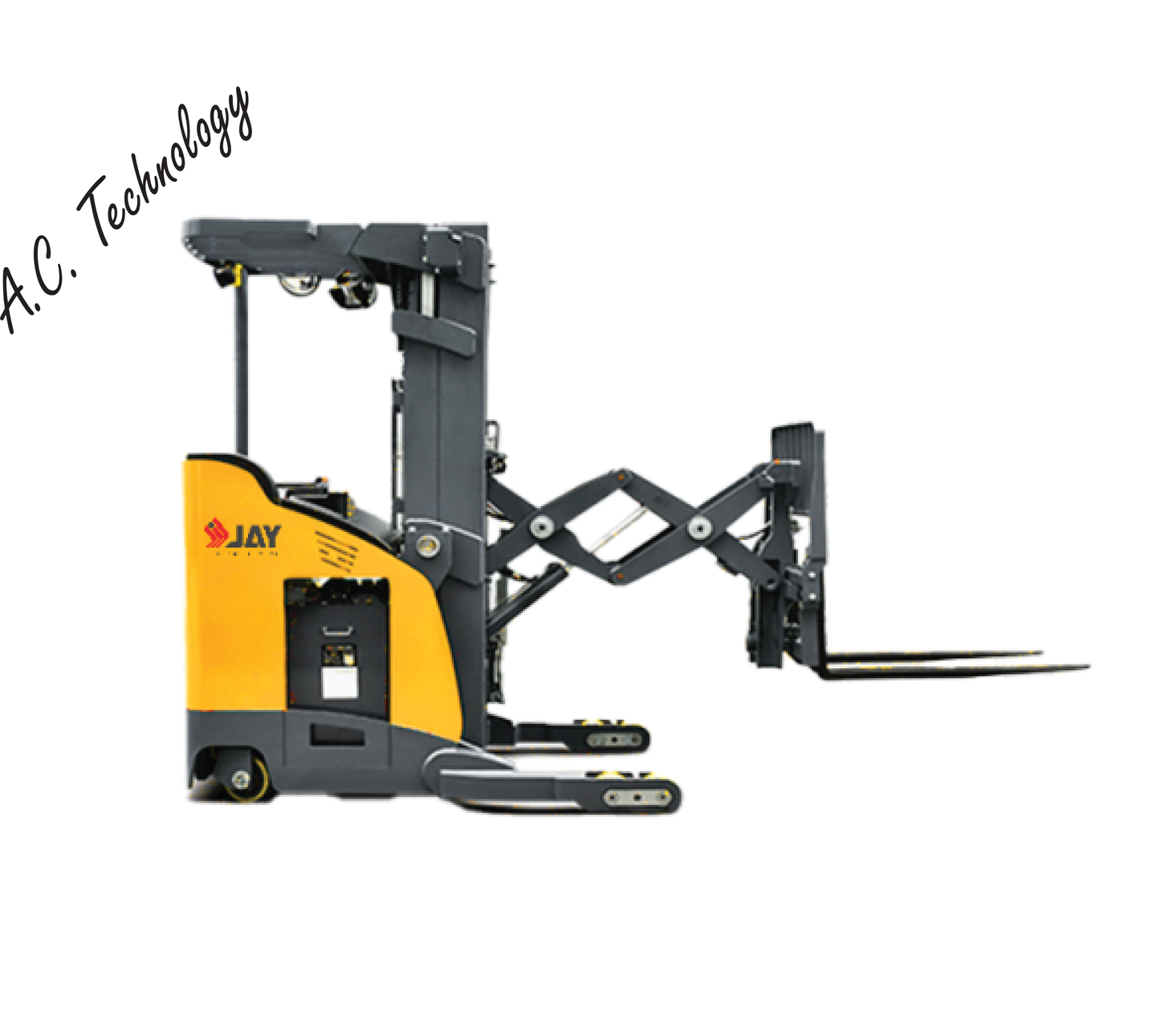

Electric Reach Truck - Double Deep - Capacity: 2000 Kgs. (ERTMI-D-20 M1)
Price
₹0.00
Excluding Taxes
Product Description : ‘JAY’ Electric Reach Truck – Double Deep is engineered for high-bay warehouse environments, combining a stable reach mechanism with a slim chassis to handle loads up to 2000 kgs at heights up to 10000 mm. Utilizing a unique extended-reach mechanism (often a double pantograph or telescopic forks), this truck is engineered to store and retrieve pallets two positions deep into racking, effectively reducing the number of required aisles and maximizing cubic storage space.
Quantity
Make to Order. Shipping in 2-3 weeks
KEY FEATURES
- 2000 kg Load Capacity: Reliable handling of standard pallet loads
- 10000 mm Lift Height: Access ultra-high racking systems
- Double Scissor Reach Mechanism: allows or place a pallet in the second rack position.
- Scissor telescopic mechanism: forks move forward or retract flexibly
- Ergonomic Operator Compartment: Comfort and visibility optimized
- Regenerative Braking: Energy recovery to extend battery life
- Good Visibility: Design to provide excellent visibility of the load and the fork tips.
TECHNICAL SPECIFICATIONS
- Load Capacity – 1450 kgs
- Max Lift Height – 10000mm
- Load centre – 600mm
- Fork Length – 1070mm
- Fork Width – 702mm
- Overall Width – 1364mm
- Power – 48V/550 Ah
