Hydraulic Mobile Dock Ramp - Capacity: 10000 Kgs. (HMDR-100 M1)
₹0.00

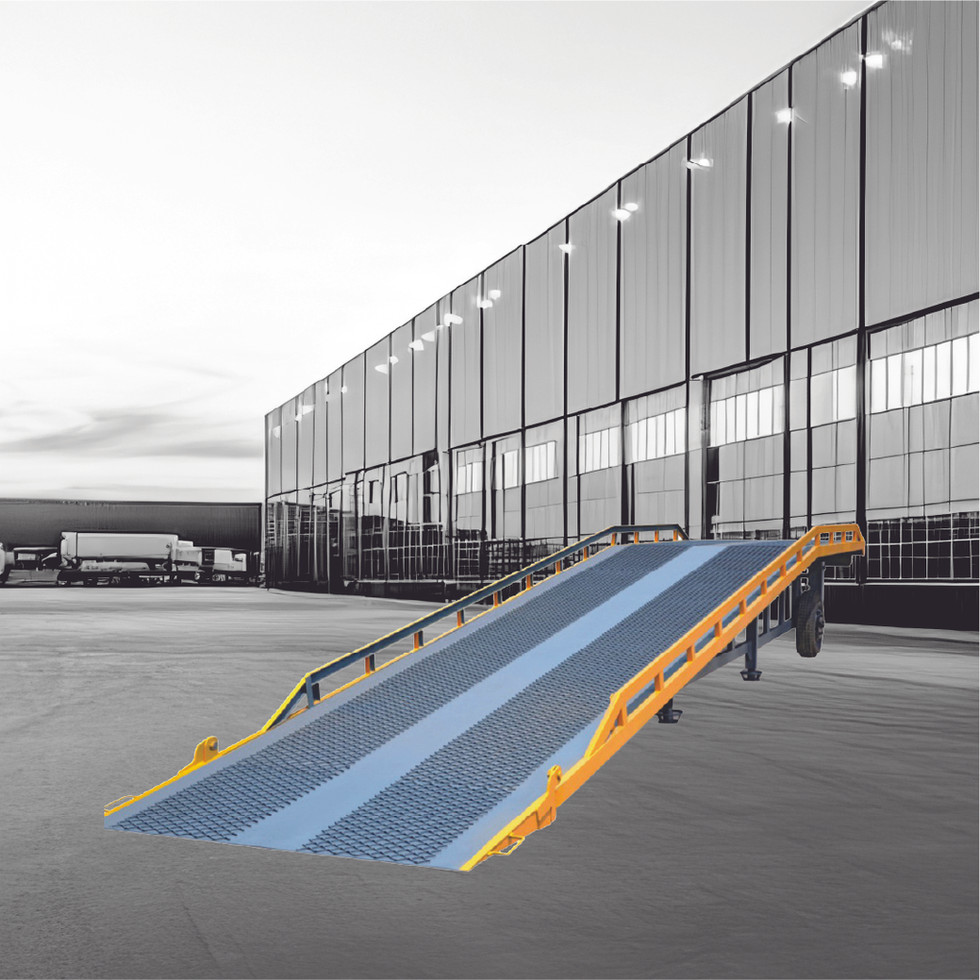

JAY Hydraulic Mobile Dock Ramp HMDR-100 M1 delivers powerful mobile loading capability for industrial settings, handling up to 10,000 kgs. The expansive 10,000 × 2,200 mm platform and adjustable height (1200–1700 mm) accommodate a wide range of trailers and dock heights. Hand-pump hydraulic operation enables safe and precise leveling, while rugged rubber-tyred wheels provide effortless movement to any spot on your yard—no pit installation required.
This ramp is purpose-built for fast deployment, heavy forklift traffic, and operations demanding versatility and strength. Its mobility saves dock real estate and supports loading/unloading anywhere on your premises.
Quantity
Make to Order. Shipping in 2-3 weeks
KEY FEATURES
- 10,000 kgs Load Capacity: Designed for heavy forklifts, large pallet loads, and bulk material transfers
- Large Platform: Ample 10,000 mm length × 2,200 mm width for wide vehicles/trailers
- Height Adjustable: Raise to 1,700 mm or lower to 1,200 mm for flexible vehicle access
- Hand-Pump Hydraulic Controls: Manual operation for safe, controlled lifting
- Rugged Rubber Tyres: Outstanding mobility and shock absorption across varied surfaces
- Portable Design: Move ramp for use with any dock or yard location as needed
TECHNICAL SPECIFICATIONS
| Load Capacity | 10,000 kgs |
| Platform Size (L×W) | 10,000 × 2,200 mm |
| Max Raised Height | 1,700 mm |
| Max Lowered Height | 1,200 mm |
| Controls | Hand Pump Operated |
| Wheels | Rubber Tyres |
